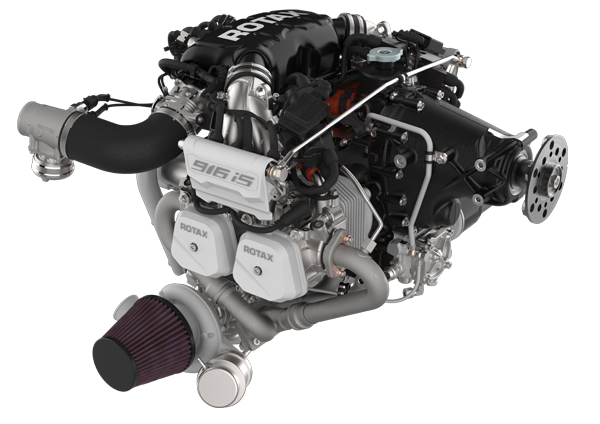

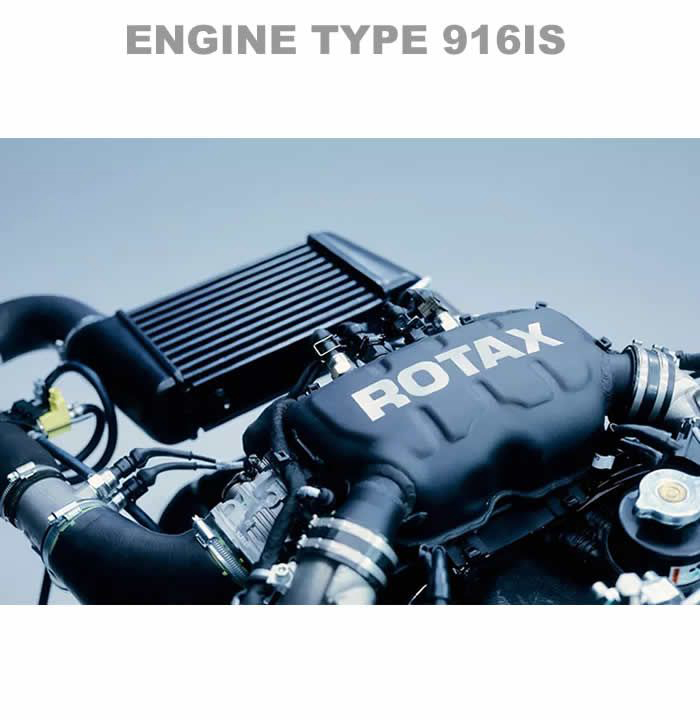

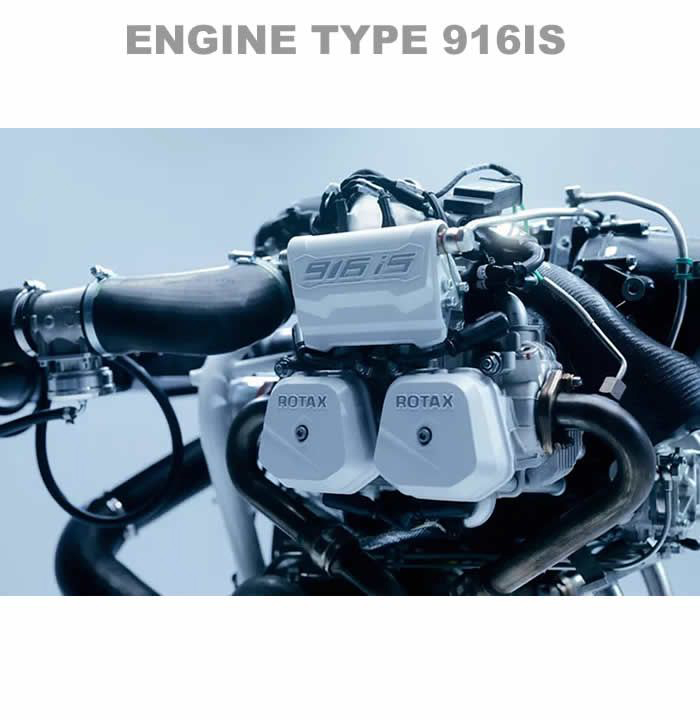

Rotax916is|iSc - 160HP 航空发动机

Rotax916is2A | Rotax916is3A | Rotax916iSc2A | Rotax916iSc3A

Rotax916iS2C24 | Rotax916iS3C24 |Rotax916iSc2C24 |Rotax916iSc3C24

Dynamic, turbocharged iS engine with best power-to-weight ratio and TBO 2,000h.

• Four-stroke piston engine with four liquid and air-cooled cylinders

• Redundant electronic fuel injection and ignition, eco mode

• Turbocharger, stainless steel exhaust

• Dry sump forced lubrication with separate oil tank, automatic adjustment by hydraulic valve tappets

• Engine management system (EMS)

• Electric starter (12 or 24 Volt)

• Propeller speed reduction gearbox

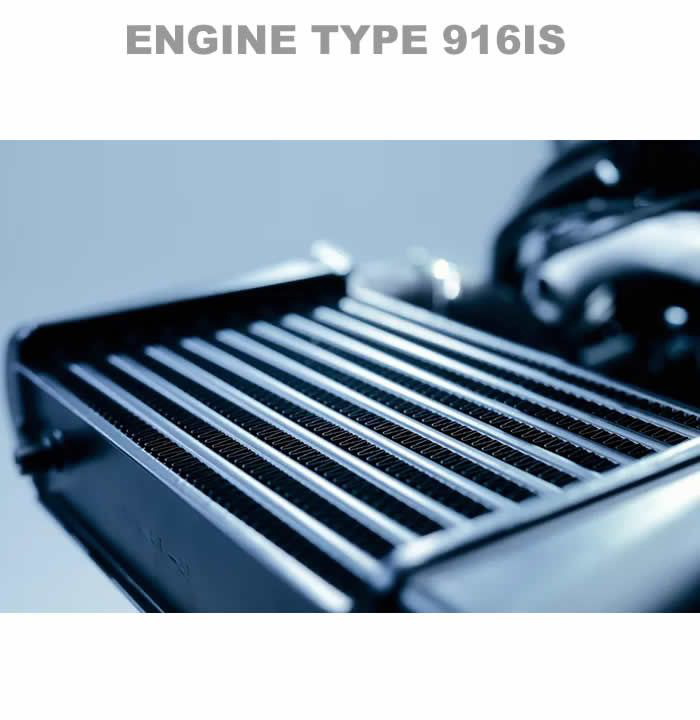

• Intercooler

• TBO 2,000 hrs

• Maximum operating altitude 23,000 feet

• Full take-off power up to 15,000 feet

Note:

Rotax Gearbox (Version 2): the propeller shaft in the gearbox is not set up for hydraulic governor for constant speed (large bore hole through center).

Rotax Gearbox (Version 3): the propeller shaft has a small bore through the end allowing oil from the governor to reach the constant speed propeller.

Rotax变速箱(版本3):传动轴有一个小孔通过末端允许油从调速器到达等速螺旋桨
