航空发动机气缸压差|气缸压缩性能测试仪E2M

DIFFERENTIAL CYLINDER PRESSURE TESTER MODEL E2M

适用于Rotax、莱康明、continental等通用航空活塞发动机

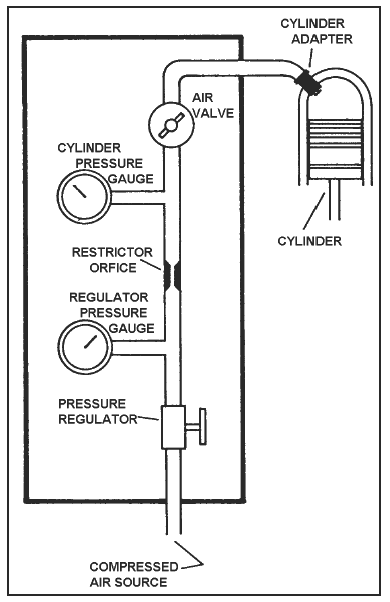

The Differential Cylinder Pressure Testers quickly locate worn and cracked rings, defective intake and exhaust valves, scored and cracked cylinders, leaky head gaskets, and worn and stripped spark plug bushings; virtually every potential cause of pressure loss.

Model E2M Tester, for cylinders of less than a 5.00 inch bore* with a .040 inch diameter orifice, that eliminates all guess-work by enabling you to determine the exact location and cause of your engine's efficiency loss. This tester is recommended by TCM per   Service Bulletin SB03-3

大陆发动机服务通告：

Teledyne Continental Service Bulletin SB03-3.

莱康明发动机服务通告：

Textron Lycoming SI-1191A Service Instruction

注：适用于直径小于5.00英寸汽缸，Orifice孔径0.04英寸

Model E2M includes:

Slow Fill Valve™

Safely find TDC

Safely bleed cylinder test pressure to

zero for testing multiple cylinders

No repeated pressure adjustments

Master Orifice Valve™ Built in Master Orifice, for fast and easy Master Orifice Test

10/14 mm Adapter Available, sold separately.

Features

Heavy Duty Regulator

Heavy Duty Gauges

All Connections Quick-Disconnect

18 mm Plug Adapter

Extra Long High Pressure Hose

Complete instructions with each unit
