E SERIES 1.25 BPAE1.38J PLATE for use on Jabiru Aircraft

Description

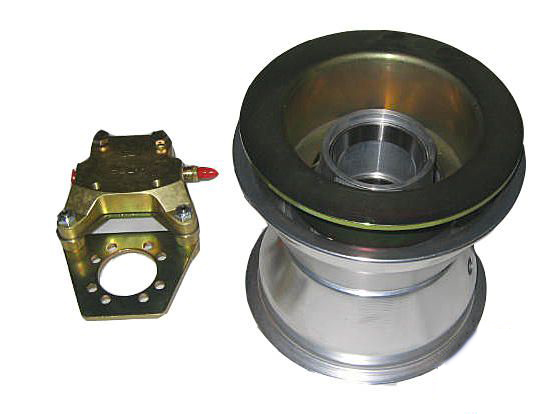

Matco Aircraft Landing Systems produces a superior 6″ inch wheel and brake assembly for use with aircraft requiring less than 700 lbs per wheel.

This model uses 1.25 inch TAPER/ROLL bearings. (Check the product comparison table for other bearing and caliper configurations).

Dimensions

The MHE6B E SERIES is a 6″ inch wheel with 6.22 inch width with an additional 1.31 inch caliper spacing.

Bearing spacing is 2.71 inches and axle spacing is 0.68 inches. The total weight of this wheel and brake assembly is 6.3 pounds.

The bearing axle diameter is 1.25 inches.

FEATURES

The MHE6B wheel utilizes CNC spun aluminum alloy wheel halves for superior strength, lightweight,

and resistance to corrosion that is inherently found in magnesium wheels.

The MHE6B wheel uses a 1.25 inch tapered roller bearing, designed and rigorously tested for long life and resistance to bearing fatigue.

The ‘E’ series wheel features a single piston brake assembly with an external caliper for easy maintenance.

Caliper removal is accomplished by removing two bolts giving easy access to the linings.

Al-Ni-Brz bushings are used on ‘E’ series wheels to ensure smooth caliper travel.

The CNC spun wheel halves offer a precision surface for use with a variety of commercial tires.

The MHE6B1.25EV is configured for the Evektor aircraft using the WHLAXLE3EV axle assembly

TIRE/TUBE

Precision machining on the MHE6B wheel allows for the use of a variety of tires to include

Goodyear, McCreary, Michelin, and many 6″ industrial tires.

Tires wider than 6 inches require the addition of MH E Series spacer kit to match the axle.

Performance参数

The MHMHE6B1.25EV is designed for the following standards:
